Manrose MF150T 150mm In-Line Mixed Flow Extractor Fan with Timer - Return Unit

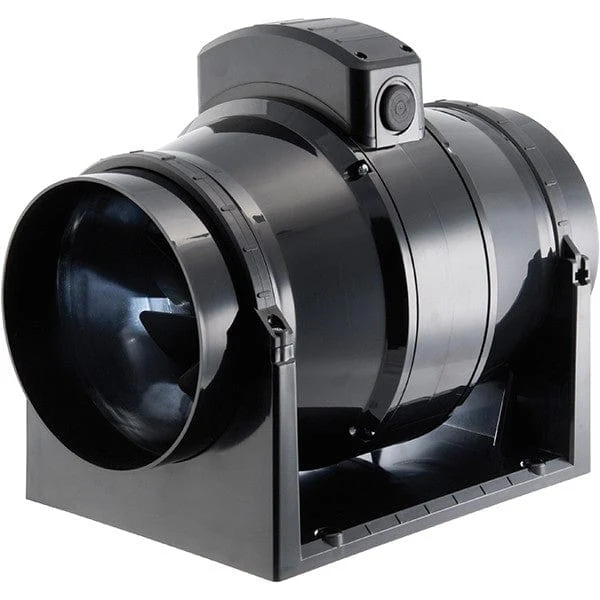

Manrose MF150T 150mm In-Line Mixed Flow Extractor Fan with Timer

This Manrose in-duct mounted mixed flow fans have been designed to produce higher working pressures for applications that require high air flows, with low relative noise. Mixflo fans can be mounted in a variety of applications as shown and are suitable for use with either rigid or flexible ducting.

It features high-quality ball bearings, long life motors, continuously rated and warranted for a minimum of 30,000 hours or 3 years. Easy installation and maintenance with the fan assembly easily removed from rigid ducting installations using the specially designed construction.

Specifications

• RPM High: 2400
• RPM Low: 1700
• Wattage High: 48
• Wattage Low: 42
• Maximum Airflow (m³/hr) High: 500
• Maximum Airflow (m³/hr) Low: 400
• Maximum Airflow (l/s) High: 138
• Maximum Airflow (l/s) Low: 111
• Maximum Pressure (Pa) High: 360
• Maximum Pressure (Pa) Low: 320
• dB(A) 3m* High: 35
• dB(A) 3m* Low: 31
• Max Operating Temp ºC: 40
• Hole Size: 6"
