Manrose MF100T 4"/100mm In-Line Mixed Flow Extractor Fan with Timer - Return Unit

Manrose MF100T 4"/100mm In-Line Mixed Flow Extractor Fan with Timer - Return Unit

Select Used Grade
From $43.65
Manrose MF100T 4"/100mm In-Line Mixed Flow Extractor Fan with Timer - Return Unit—
$43.65

The Story

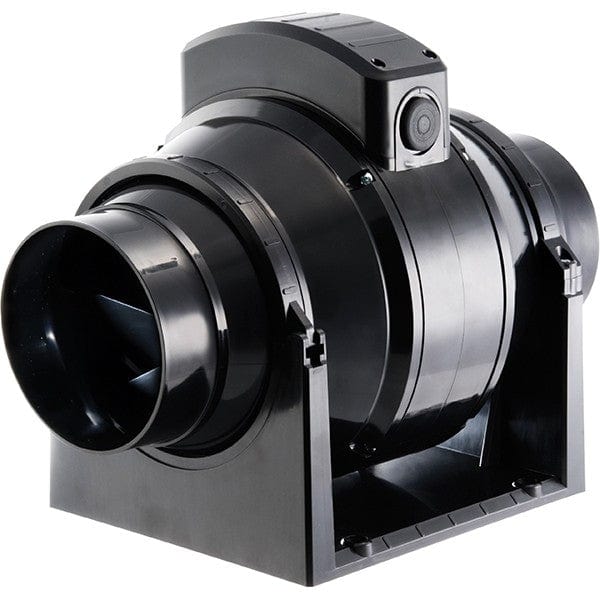

Manrose MF100T 4"/100mm In-Line Mixed Flow Extractor Fan with Timer


This Manrose in-duct mounted mixed flow fans have been designed to produce higher working pressures for applications that require high air flows, with low relative noise. Mixflo fans can be mounted in a variety of applications as shown and are suitable for use with either rigid or flexible ducting.


It features high-quality ball bearings, long life motors, continuously rated and warranted for a minimum of 30,000 hours or 3 years. Easy installation and maintenance with the fan assembly easily removed from rigid ducting installations using the specially designed construction.


Specifications

  • RPM High: 2400
  • RPM Low: 1700
  • Wattage High: 25W
  • Wattage Low: 20W
  • Maximum Airflow (m3/hr) High: 245
  • Maximum Airflow (m3/hr) Low: 180
  • Maximum Airflow (l/s) High: 68
  • Maximum Airflow (l/s) Low: 50
  • Maximum Pressure (Pa) High:  200
  • Maximum Pressure (Pa) Low: 120
  • dB(A) 3m* High: 24
  • dB(A) 3m* Low: 20
  • Max Operating Temp ºC: 40
  • Hole Size: 4"

Description

Manrose MF100T 4"/100mm In-Line Mixed Flow Extractor Fan with Timer


This Manrose in-duct mounted mixed flow fans have been designed to produce higher working pressures for applications that require high air flows, with low relative noise. Mixflo fans can be mounted in a variety of applications as shown and are suitable for use with either rigid or flexible ducting.


It features high-quality ball bearings, long life motors, continuously rated and warranted for a minimum of 30,000 hours or 3 years. Easy installation and maintenance with the fan assembly easily removed from rigid ducting installations using the specially designed construction.


Specifications

  • RPM High: 2400
  • RPM Low: 1700
  • Wattage High: 25W
  • Wattage Low: 20W
  • Maximum Airflow (m3/hr) High: 245
  • Maximum Airflow (m3/hr) Low: 180
  • Maximum Airflow (l/s) High: 68
  • Maximum Airflow (l/s) Low: 50
  • Maximum Pressure (Pa) High:  200
  • Maximum Pressure (Pa) Low: 120
  • dB(A) 3m* High: 24
  • dB(A) 3m* Low: 20
  • Max Operating Temp ºC: 40
  • Hole Size: 4"
