Lewden 20kA Single Pole and Neutral Type 2 SPD Kit with Enclosure - SRG1VCU-RM

Lewden 20kA Single Pole +N Type 2 Surge Protection with Steel Enclosure - SRG1VCU-RM

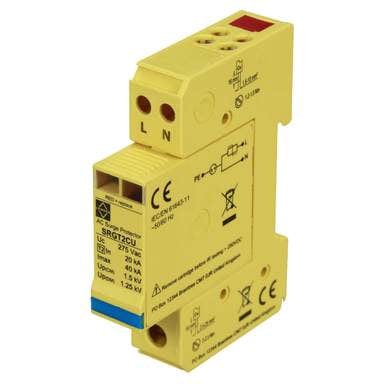

This Lewden surge protection device is for installations where surge protection cannot be accomodated within the existing consumer unit. The enclosure has a top hinged door and steel exterior rated IP20. It utilizes SRGT2CU type 2 single phase surge arrester and is suitable for us in TN-C-S (PME)/TNS/TT network systems.

• Surge Protective Class: Type 2
• Material: Steel
• Protection Degree: IP20
• Frequency: 50-60Hz
• Rated Operating Voltage: 230V
• Earthing Systems: TN-C-S-(PME)
• Earthing Systems: TT
• Earthing Systes: TN-S
• For Cables: 35mm2
• Net Weight: 1.87Kg
• Dimensions (HWD): 250 x 135 x 87mm
